A&D Medical

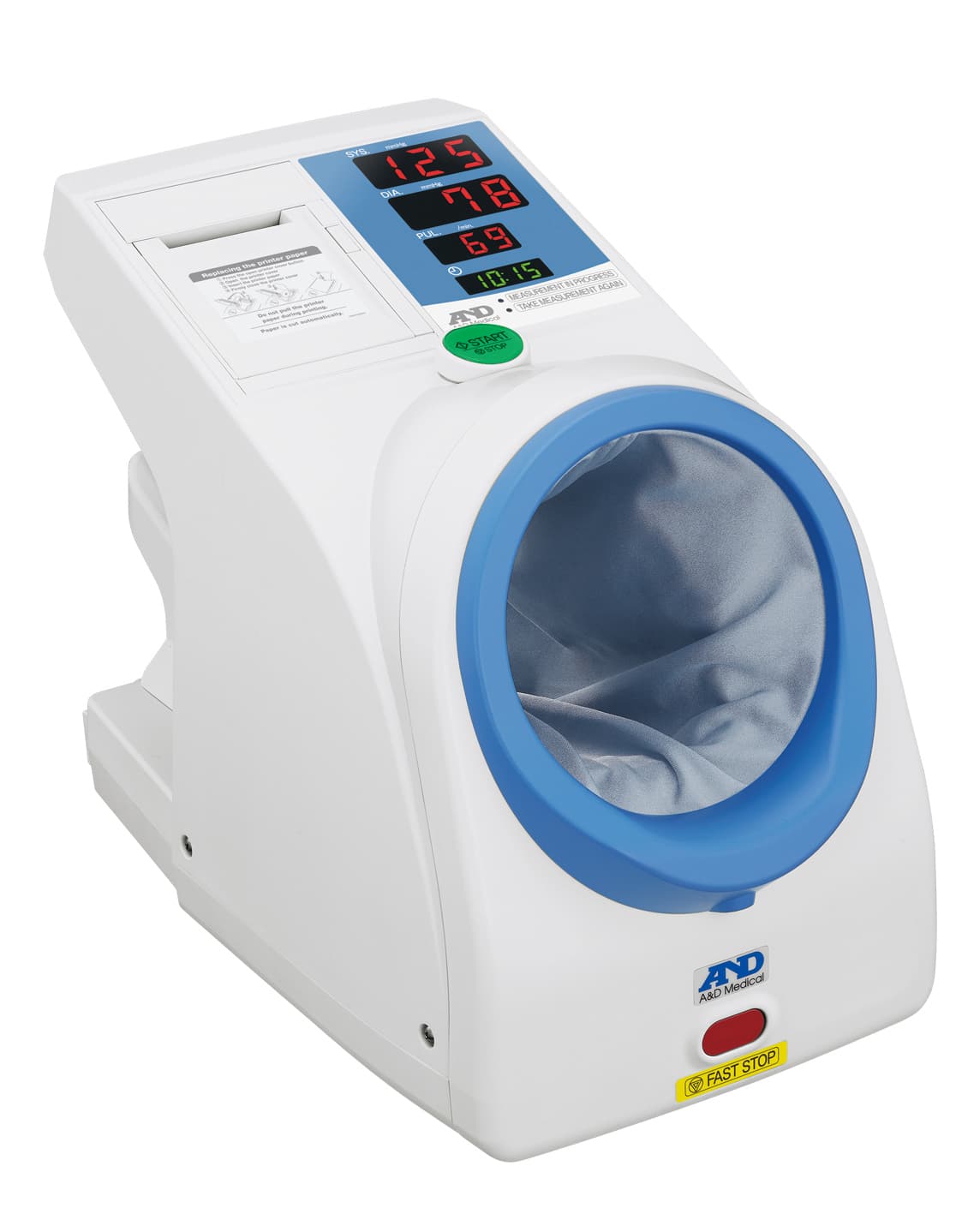

A&D Medical Waiting Room Upper Arm Blood Pressure Monitor


'A&D Medical' Technology You Can Trust!

  • Waiting Room Blood Pressure Monitor
  • Freestanding fully automatic blood pressure monitor
  • Allows patients to take their own blood pressure measurement using a fully automatic monitor before seeing the doctor
  • This “self-triage” saves the patients’ time and lightens the workload for the medical staff
  • Options:
  • Waiting Room Blood Pressure Monitor
  • - Waiting Room Blood Pressure Monitor with MiniDIN 8pin and D-Sub 9pin for Communication Board
  • Rental Options Available
  • - Call us on 01 835411 for more information.
Grouped product items
Product Name Qty
A&D Medical Waiting Room Blood Pressure Monitor with MiniDIN 8pin and D-Sub 9pin
A&D Medical Waiting Room Blood Pressure Monitor
Continue Shopping

Additional Information +


  • Fast and accurate measurement, compact profile, ease-of-use, and durability
  • Slim upright design of TM-2657P enables the ideal arm position to make precise blood pressure measurements
  • Dual design allows the users to measure with either arm
  • Antibacterial cuff included as standard
  • Clinically validated
  • Accurate measurement with sophisticated automatic cuff size adjustment mechanism Easy operation
  • Small footprint

Application & Point of use

  • The TM-2657P is the latest model in the range of freestanding fully automatic blood pressure monitors
  • Features a slim and compact shape with increased printout speed, and offers a diversified selection for connectivity
  • The TM-2657P helps expand market potential, not only for hospitals, medical clinics and health check-ups, but also for corporate wellness in the workplace, pharmacy services, and fitness centres
  • Please find attached Data Sheet for more information
 Measurement method  TM-2657P
 AC power supply unit  Switching 100-240V AC 50-60Hz
 Protection against electrical shock  Class I, Type B
 Pressure display range  0-299 mmHg
 NIBP measurement range  SYS 40-270 mmHg, DIA 20-200 mmHg, Pulse 30-240 bpm
 Measurement accuracy  Pressure: ±3 mmHg Pulse: ±5%
 NIBP clinical test  BS EN1060-4:2004, BHS:1993, +/−5mmHg SD:8mmHg
> Cuff fastening method  Torque Controlled Belt drive Method (TCBM)
 External dimensions  241(W)x324(H)x390(D)mm (9.5(W)x13.0(H)x15.4(D)inches)
 Weight  Approx. 5.5 kg (12.1lb)
 Applicable arm circumference  7inches(18.0cm) to 13.8inches (35.0cm)
 Cuff size  125x300mm (4.9x11.8inches)
 Display: Systolic (SYS), Diastolic (DIA), Pulse rate (PUL)  3-digit display by LED
 Counting function  Display of number of measurements to date: up to 999,999 times
 Applied pressure  Automatic inflation by air pump
 Pressure detection method  Capacitance type pressure transducer
 Operating conditions  Temperature: 10-40 °C humidity: 30-85% RH, no condensing
 Transport/storage conditions  Temperature: –20-60 °C humidity: 10-95% RH, no condensing
 Safety device (Electrical)

 Quick release when START/STOP button is pressed

 Quick release when FAST STOP button is pressed

 Clock Function

 Clock Display, Date & Time (2015 ~ 2050)

Product Codes +

More Information
ManufacturerA&D Medical
Medicinal ProductNo
