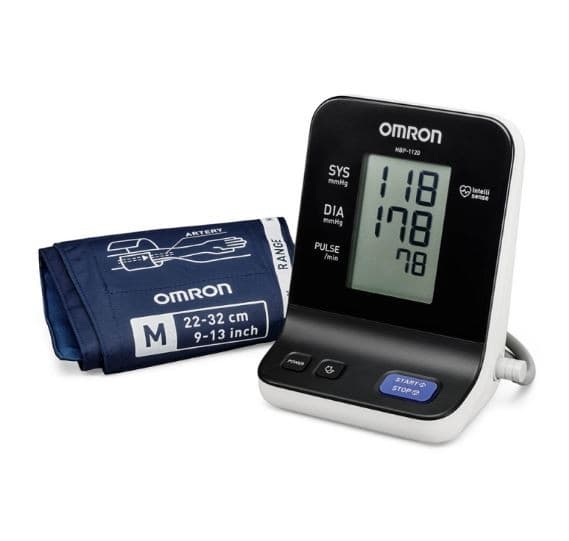

Omron HBP-1120 Professional Upper Arm Blood Pressure Monitor & Accessories

Key Features

• Dual Measurement Modes: Choose between automatic oscillometric measurements or manual auscultation using a stethoscope, catering to various patient conditions. :contentReference[oaicite:3]{index=3}
• Zero Indicator Function: Ensures the device is properly calibrated before each measurement, enhancing accuracy. :contentReference[oaicite:4]{index=4}
• Highly Durable Design: Built with a robust pump, sensor, and sturdy plastic cuff connector to withstand daily intensive use in clinical environments. :contentReference[oaicite:5]{index=5}
• Five Cuff Sizes Available: Compatible with cuffs ranging from SS (12–18 cm) to XL (42–50 cm) to accommodate various patient arm sizes. :contentReference[oaicite:6]{index=6}
• Simple Operation: Features a large start/stop button and dedicated auscultation mode button for ease of use. :contentReference[oaicite:7]{index=7}
• Compact and Portable: Its compact dimensions (130 x 175 x 120 mm) make it easy to place on any desk or transport between rooms. :contentReference[oaicite:8]{index=8}
• Flexible Power Options: Operates on 4 AA batteries or via the included AC adapter, providing convenience in various settings. :contentReference[oaicite:9]{index=9}

Technical Specifications

• Model: HBP-1120
• Measurement Method: Oscillometric and Auscultatory
• Pressure Range: 0 to 300 mmHg
• Pulse Rate Range: 40 to 200 beats per minute
• Accuracy: ±5 mmHg for blood pressure; ±5% for pulse rate
• Display: 7-segment LCD
• Weight: Approximately 0.51 kg
• Dimensions: 130 x 175 x 120 mm
• Power Supply: 4 x AA batteries or AC adapter (included)
• Applicable Arm Circumference: 12–50 cm (with appropriate cuff size)
• Warranty: 5 years

What's in the Box?

• Omron HBP-1120 Main Unit
• Medium Cuff (22–32 cm)
• AC Adapter
• Instruction Manual
• Guarantee Card

Usage Instructions

1. Select the appropriate cuff size for the patient.
2. Wrap the cuff snugly around the patient's upper arm.
3. Choose the desired measurement mode (oscillometric or auscultation).
4. Press the start button to begin measurement.
5. Record the displayed blood pressure and pulse rate readings.
6. After use, clean the device and cuff according to the instruction manual.

Note: This device is intended for use by healthcare professionals in clinical settings.

Optional Spare Cuffs

• X Small (12-18cm) [Code: 9546021-0]
• Small (17-22cm) [Code: 9546007-5]
• Medium (22-32 cm) [Code: 9546008-3]
• Large (32-42 cm) [Code: 9546009-1]
• X Large (42-50cm) [Code: 546010-5]

Safety Warning: Ensure proper cuff size selection and placement to obtain accurate readings. Refer to the instruction manual for detailed guidelines.

• Safety Standards: EN60601-1:2006+A1:2013, EN60601-1-2:2015
• Protection class: Class II (AC adapter), internally powered equipment (when operating with battery only)
• Degree of Protection: Type BF (Applied part): Cu MDD
• AC adapter Input Voltage Range: AC 100V to 240 V; 50/60 Hz Output Voltage Range: DC 6 V +/- 0.5 V; 0.7 A
• Pressure Accuracy: Within +/- 3 mmHg
• Warranty: 3 Years
