Standard Features

Contactless temperature monitoring
Connect via the CONTROLLA app to view real-time data, download reports, and monitor alerts Temperature recorded every 20 minutes
Stable temperature control
Maintains consistent internal temperature with fluctuations within ±2.9 °C
Integrated data logger
Stores 6 months of temperature data and 5 recent alarms Data downloadable via CONTROLLA app
Power failure protection
Battery backup supports alarms and data logging for 24 hours
Temperature alarms
Audio-visual alerts if temperature exceeds or drops below limits Last five alarms stored and managed via FIFO
+2 °C safety limit
Automatically activates protective functions and alerts if temperature drops below +2 °C
Warning display
Critical alerts remain on screen until manually cleared
Min/Max temperature display
Directly view minimum and maximum values on controller screen
External sensor access
12.5 mm port for sensor installation without affecting door seal or safety
Circulating air cooling system
Smart fan pauses when door opens, resumes when closed, to reduce temperature shock
Cold surface protection
Evaporator cover prevents direct contact with stored products
Smart LED lighting
Turns on only when door opens to reduce light exposure and save energy
Calibration block
Aligns air temperature readings with actual product temperature
Mechanical door lock
Keeps medicines securely stored
Reversible door & replaceable seal
Allows flexible installation and easy maintenance

Comparison Table

Model	MD14DC-P301QX2	MD40DC-P301BEQ
Type	Undercounter	Pharmacy refrigerator
Gross capacity, l	130	385
Net capacity, l	100	290
Factory temp. setting, °C	+5
Fluctuation, °C	0.5
Gradient, °C	2.9
Time to +10 °C (empty, +25 °C TU)	40 min
Time to +5 °C (empty, +25 °C TU)	40 min
Recovery time after door opening	8 min
Temp deviation +	+0.5 °C	+1.4 °C
Temp deviation –	–1.4 °C	–1.3 °C
Heat output, kJ/h	135	285
Ambient temp range, °C	+10 to +35
Noise level, dB(A)	42	44
Refrigerant	R600a
Daily energy use, kWh/24h	0.751	1.280
Annual energy use, kWh	274	467
Rated voltage, V	220–240
Rated frequency, Hz	50
Cooling system	Fan forced
Defrost	Automatic
Volt-free alarm contact	No
Self-closing door	Yes
Access port	Yes
Interior light	LED ceiling strip	Vertical LED strip
Alarm signal	Optical and acoustical
Low temp protection	Yes
Number of shelves	2 adjustable, 2 bottom	5 adjustable + 1 bottom
Shelf size, mm	420×324; bottom: 465×263, 445×180	380×495; bottom: 445×180
Max shelf load, kg	20	40
Shelf material	–	Wire coated in white polymer
Side wall material	Steel, white painted
Inner cabinet material	HIPS polystyrene
Door type	Double glass in aluminium frame
Lock type	Mechanical
Adjustable front feet	2
Rear supports	2 feet	2 wheels
Ext. Dimensions (mm)	870H × 560W × 620D	2025H × 600W × 620D
Int. dimensions (mm)	725H × 465W × 392D	1645H × 500W × 418D
Package dimensions (mm)	950H × 570W × 640D	2080H × 620W × 630D
Weight net, kg	37	76.5
Weight gross, kg	40	82

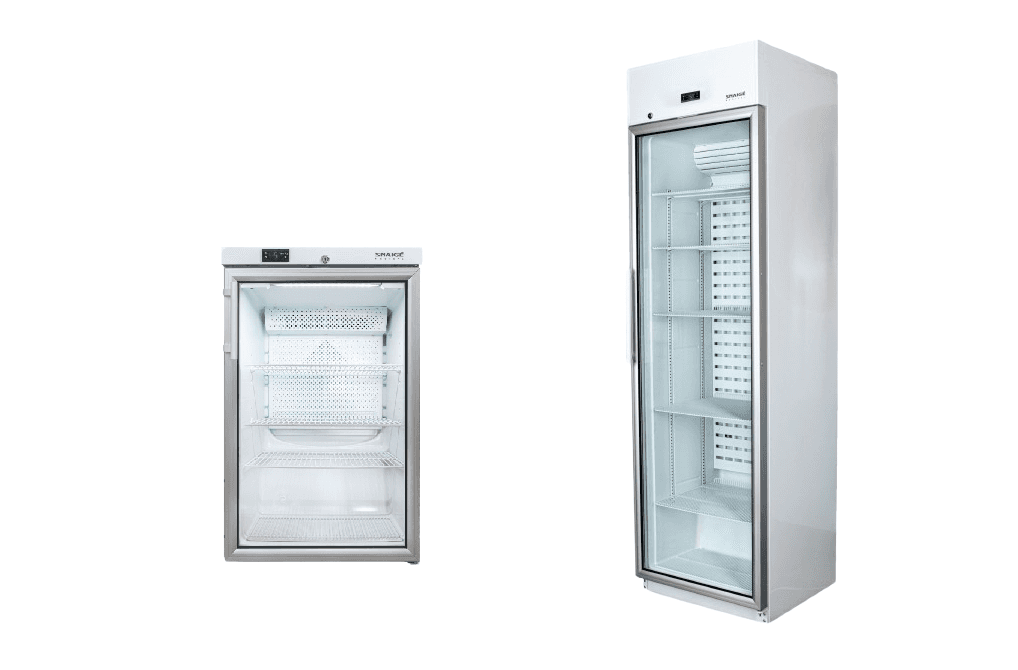

SNAIGE Medical 'Standard Line' Fridge

Overview
