Ergoscan

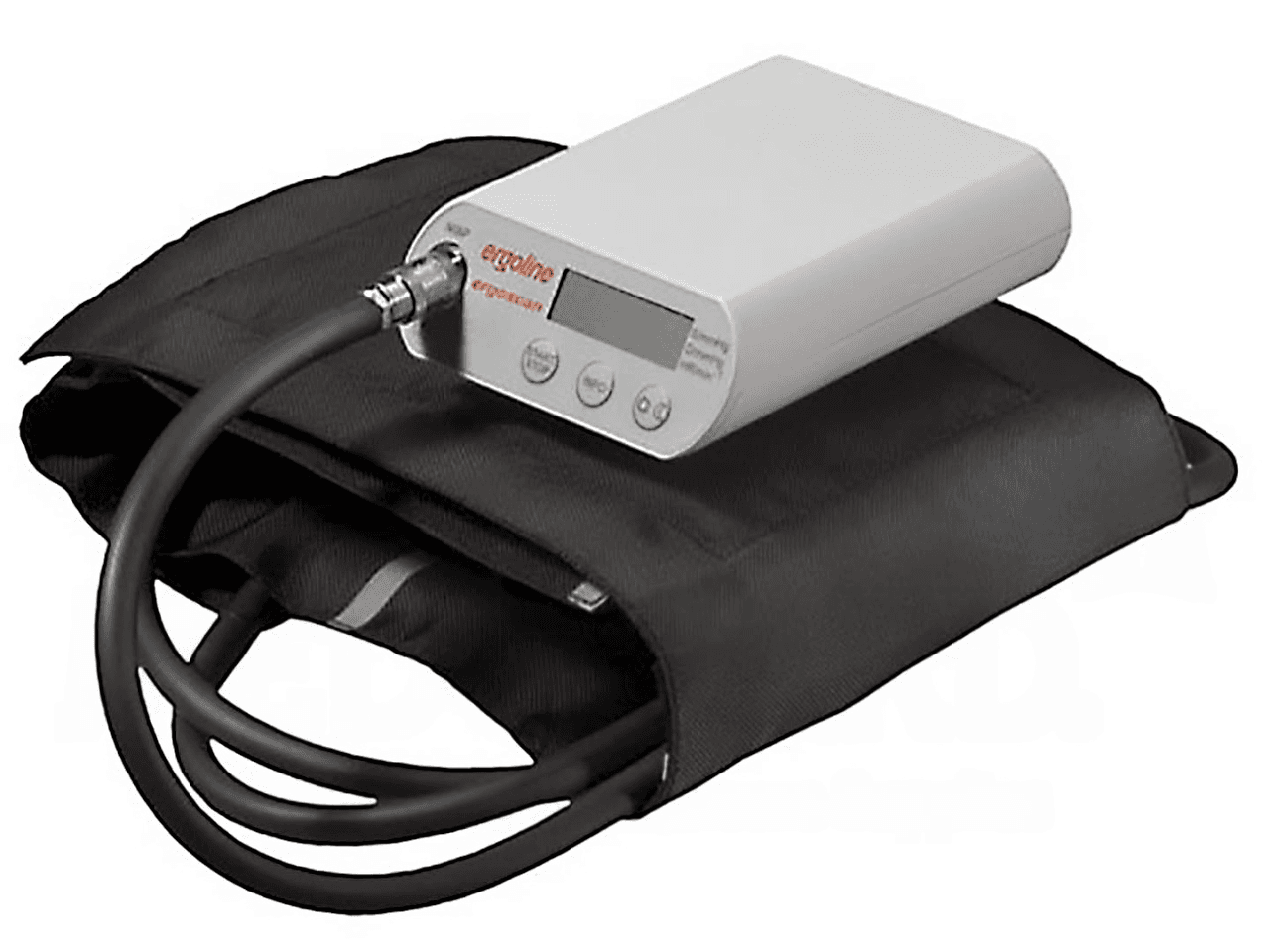

ErgoScan PC System 24 HR ABPM with Software

SKU :

ERG121.002MG-KIT

Be the first to review this product

Overview

Ergoscan ABPM is a manually-operated blood pressure measuring device
Latest in microelectronic technology using high quality components and controlled production techniques
It is carried by the patient for measurement of non-invasive blood pressure over a period of time
This is a validated 24 hr ABPM that is suitable for use in clinics and surgeries
Rental Options Available
Ergoscan Recorder with software
- €45.00 per month (Terms and Conditions) 3 Year term applies
Ergoscan Recorder without software
- €39.00 per month (Terms and Conditions) 3 Year term applies
For more information, please contact the office
In addition to the monthly charge, there is a deposit of €149 plus Vat required. This will be repaid after the 36 month rental term
For Information on our Medical Equipment Testing and Calibration Service, please click here

Please contact our sales team to order on 01 83502411

Price :

€1,315.00 Ex. Vat

SKU

ERG121.002MG-KIT

Additional Information -

Ergoscan 24 hour Ambulatory Blood Pressure Monitors PC System from ErgoLine
Takes blood pressure measurements at various intervals for up to 30 hours and stores the measurement results
High quality accessories are lightweight, unobtrusive and silent
24 Hour ABPM are extremely sensitive in taking measurements and will not over tighten on arm
Can be used for adults, children and infants by applying the corresponding ABPM cuffs and sensors*

Ergoscan PC System 24 HR ABPM with Software

ERG121.002MG

Ergoscan 24 HR BP Recorder
Ergoscan ABPM Cuff
- Standard size (24-32cm/13cm wide)
- Large size (32-42cm/13cm wide)
Carrying bag
Belt
Charging station
4 NiMH rechargeable batteries
Adult Fabricel Protective Cuff Barrier (50)
Connecting cable to PC (USB)
Windows software on USB**

Technical Data

Measurement

Measuring method: Oscillometric
Measuring time: 30 – 45 s
Data retention: Unlimited
Measurement intervals: 2 – 90 min programmable
Capacity: 200 measurements or 30 h

Measuring Range

Systolic: 60 – 260 mmHg
Diastolic: 40 – 220 mmHg
Heart rate (HR): 35 – 240 beats per minute

ABPM Cuff

Connector: Metal notch connector
ABPM Cuff pressure: 300 mmHg max.

Display / Control panel

Patient display: LCD (measuring results, error codes)
Operating controls: Membrane keypad (START/STOP, day/night, INFO)

Validation

BHS: Clinically validated due to BHS protocol

Interface

PC connection: Interface digital interface (USB)

Miiscellaneous

Dimensions (L x W x H): 10.5 cm x 8.0 cm x 2.7 cm
Weight: 190 g (incl. batteries)
Operating temperature: +10°C to +40°C (50°F to 104 °F)
Rel. humidity (operation); 30 - 75 % (no condensation)
Atmospheric pressure: 700 - 1060 hPa
Power: 2 NiMH rechargeable batteries (size AA / 1500 mAh)

* Ergoscan must not be used for newborn babies and is not suitable for use in Intensive Care Units

** Software includes the following

Windows software on CD (for Windows 08 and below)
Patient database for storing all measurement records
Graphical and numerical representation of individual values and hourly mean values
Statistical analysis of the day and night phase
Freely definable printout
Fully networkable
Integrated GDT interface for data transfer to your practice EDP system.
